1 GPM Ultraviolet Light 6 Watts 1/4" NPT
Regular price
₱1,898.00
| Specification | Details |
|---|---|
| System Type | UV Water Sterilizer for microbial disinfection |
| Rated Flow Rate | 1 GPM (≈ 3.8 L/min) |
| UV Lamp Power | 6 Watts UV-C (Low-pressure mercury lamp) |
| UV Wavelength | 253.7 nm (germicidal wavelength) |
| UV Dose | ≥ 30 mJ/cm² at rated flow (kills bacteria, viruses, protozoa) |
| Lamp Life | ~9,000 hours (replace every 12 months) |
| Chamber Material | Stainless Steel SUS304 (sometimes marketed as “titanium-grade”) |
| Chamber Size | Approx. 210–230 mm length × 50–55 mm diameter |
| Port Size | ½″ NPT (inlet & outlet) |
| Max Operating Pressure | 8–10 bar (≈ 116–145 psi) |
| Operating Temperature | 2°C – 45°C |
| Power Supply | 220V AC (or 110V AC) → Electronic ballast output for 6W lamp |
| Indicator | LED lamp-on indicator (some models include lamp-failure alarm) |
| Quartz Sleeve | Included (high-purity quartz for UV transmission) |
| O-Rings | Silicone or Viton seals for leak protection |
| Mounting | Stainless brackets included |
| Connection Type | Threaded 1/4" NPT |

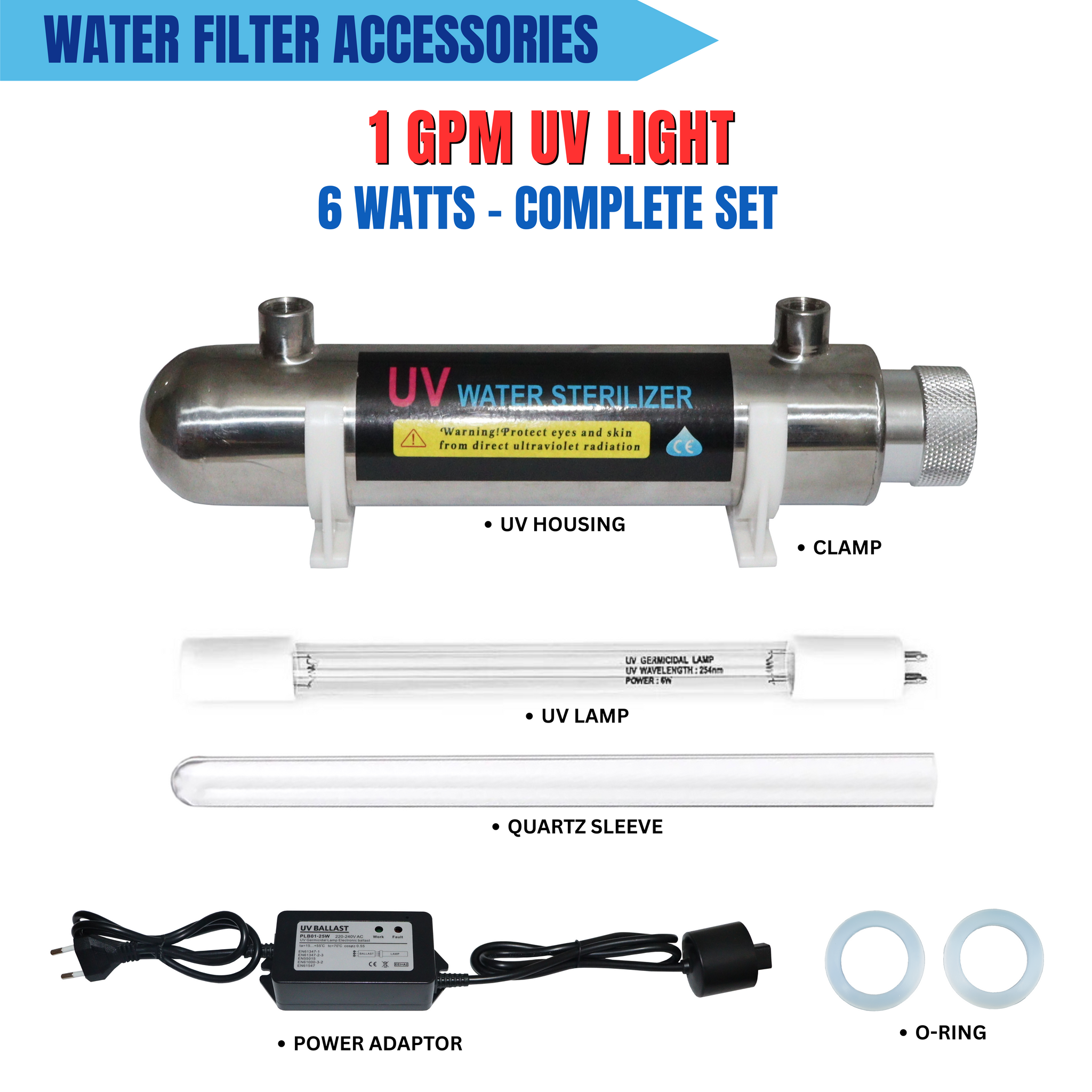

Complete Set Includes:
-
Stainless steel UV chamber
-
6W UV-C lamp
-
Quartz sleeve
-
Ballast (with LED indicator)
-
Mounting brackets & screws
-
O-rings for sealing
Typical Applications
-
Drinking water purification (under-sink systems)
-
Aquarium sterilization
-
RO system final disinfection
-
Low-flow residential point-of-use
Important Installation Notes
-
Install a 5-micron sediment filter before the UV unit for optimal performance.
-
Replace the lamp annually even if it still lights (UV intensity drops over time).
-
Clean the quartz sleeve every 3–6 months to remove mineral deposits.
