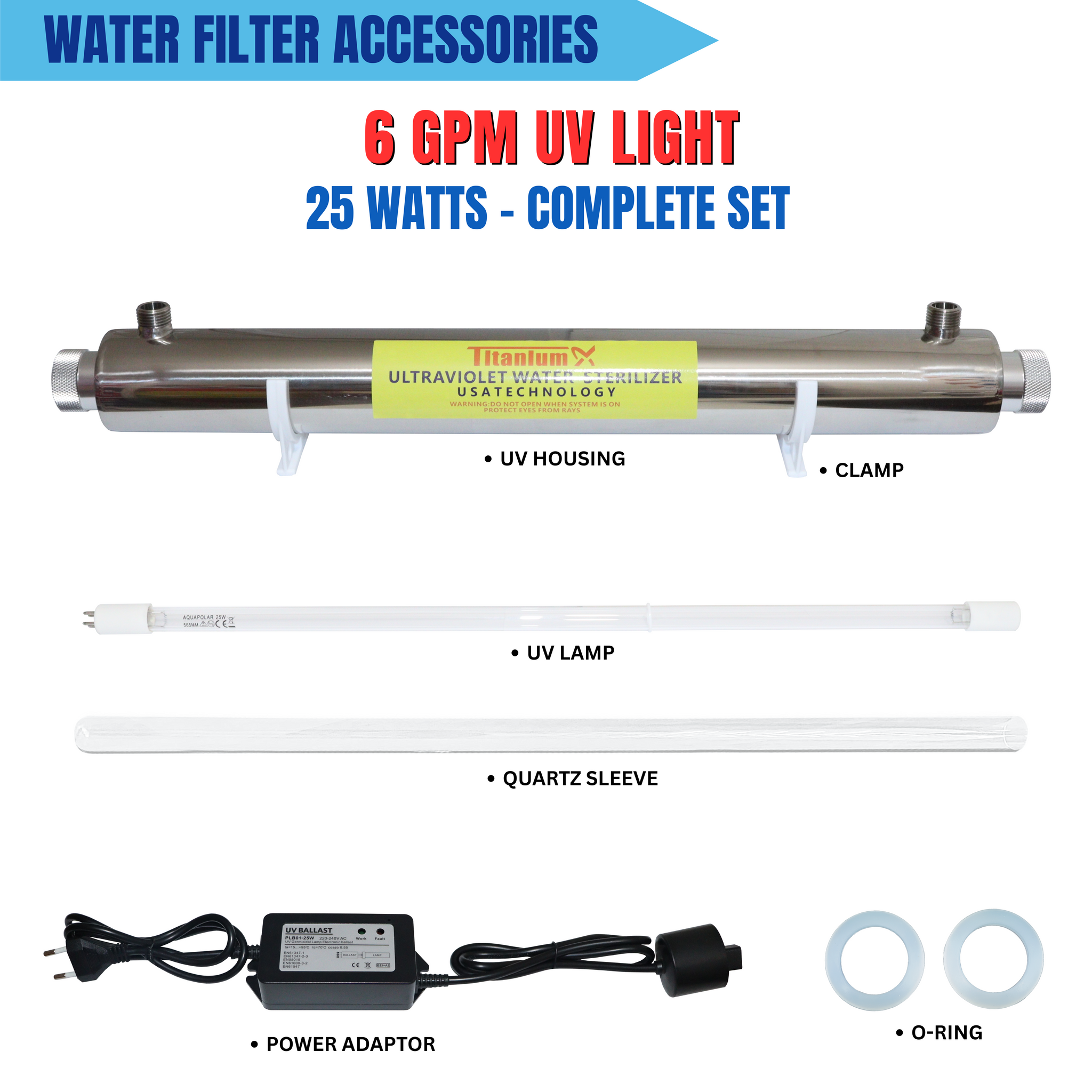

6 GPM Ultraviolet Light 25 Watts 1/2" NPT

Product Specifications

• Flow Rate: 6 GPM (≈ 1.36 m³/h)

• UV Lamp Power: 25 Watts

• Lamp Type: Low-pressure mercury UV-C lamp

• UV Wavelength: 254 nm

• Chamber Material: Stainless Steel 304 (possible upgrade: 316)

• Inlet/Outlet Size: ½" NPT male thread

• Chamber Length: ~55–60 cm (typical for 25W units)

• Max Operating Pressure: 8–10 bar (116–145 psi)

• Operating Temperature: 0–40°C

• Electrical Requirements: 220V or 110V AC, 50/60 Hz

• Power Supply: Electronic ballast with indicator light

• Disinfection Performance: Kills 99.99% of bacteria and viruses

• Lamp Life: ~9,000 hours (approx. 1 year continuous use)

• Quartz Sleeve: Included, high transparency

• End Caps & Seals: O-rings for water-tight seal

• Installation: Horizontal or vertical

• Applications:

  • Residential drinking water

  • Whole-house filtration

  • RO post-treatment sterilization
