2 GPM Ultraviolet Light 16 Watts 1/2" NPT
Regular price
₱2,859.00
2 GPM UV LIGHT
| Feature | Specification |
|---|---|
| Lamp Power | 16 W UV‑C |
| Rated Flow Rate | ~2 GPM (≈7.6 L/min) |
| Material – Chamber | Stainless steel (S304 or S316) – often called “titanium‑grade” for corrosion resistance |
| Inlet / Outlet Ports | ½″ NPT |
| UV Dose | 300–400 J/m² (30–40 mJ/cm²) at rated flow |
| Max Operating Pressure | Up to 10 bar (~145 psi) |
| Chamber Dimensions | ~370 mm length × 64 mm diameter |
| Lamp Life | ~10,000 hours (replace annually) |
| Power Supply / Ballast | 220–240 VAC input – outdoor-rated ballast with lamp-failure indicator |
| Kit Includes | Chamber, quartz sleeve, UV lamp, O‑rings, mounting brackets, power supply |
| Maintenance Recommendations | Quartz sleeve scrub every ~3 months; lamp replacement annually |
| Pre‑Filter Requirement | 5 µm sediment filter upstream for clarity |

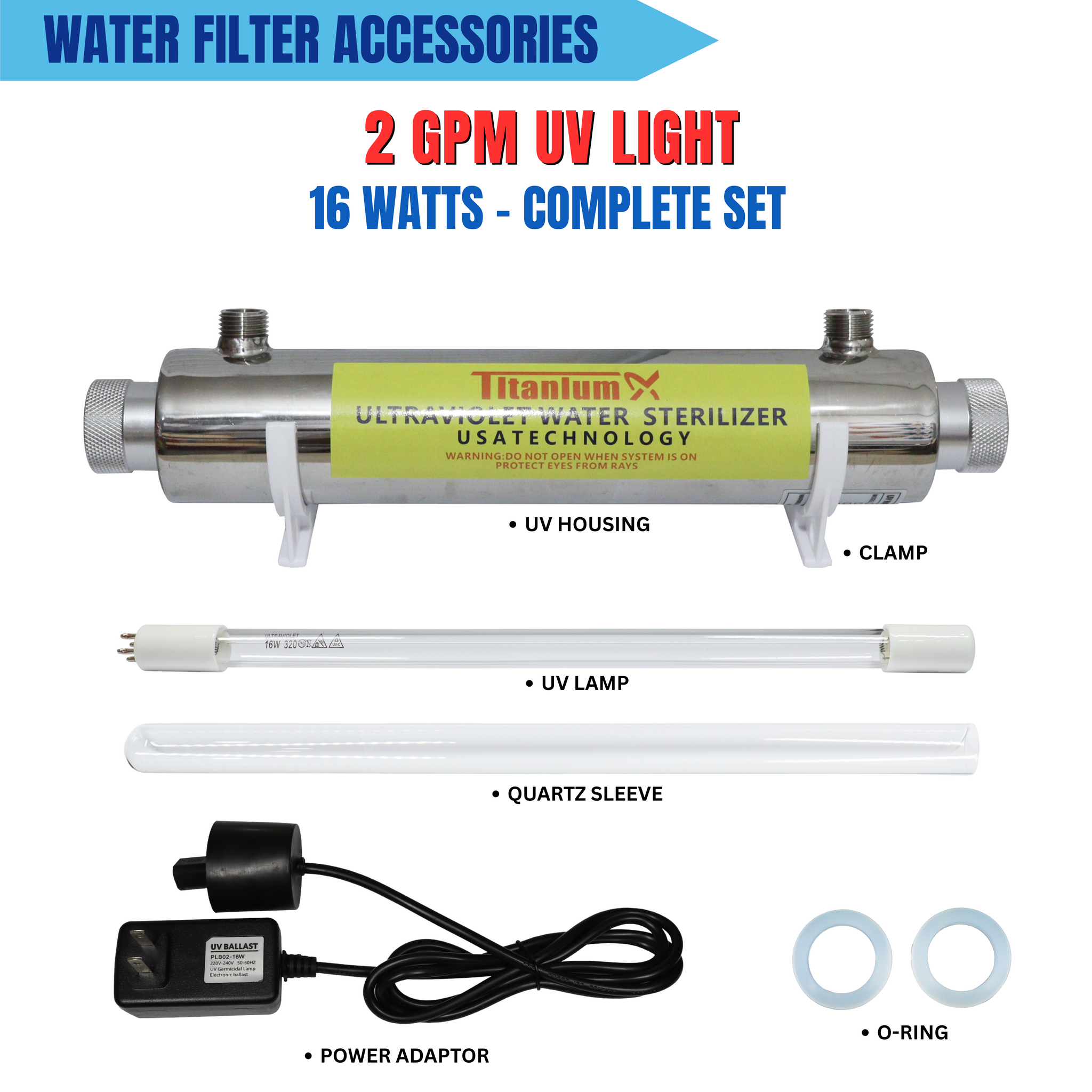

Complete Set Includes:
-
Stainless steel UV chamber
-
16W UV-C lamp
-
Quartz sleeve
-
Ballast (with LED indicator)
-
Mounting brackets & screws
-
O-rings for sealing
Typical Applications
-
Drinking water purification (under-sink systems)
-
Aquarium sterilization
-
RO system final disinfection
-
Low-flow residential point-of-use
Important Installation Notes
-
Install a 5-micron sediment filter before the UV unit for optimal performance.
-
Replace the lamp annually even if it still lights (UV intensity drops over time).
-
Clean the quartz sleeve every 3–6 months to remove mineral deposits.
